1. Introduction
H-beam shot clearing&blasting machine
is specially designed for the surface cleaning and intensifying of H-beam. It
can realize a smooth surface of certain roughness and increase the adhesion of
paint film, improving the surface quality and anti-corrosion effect. There are
totally 8 shot blaster equally arranged on both sides of blasting area. They
will be installed at the best position according to the characteristics of

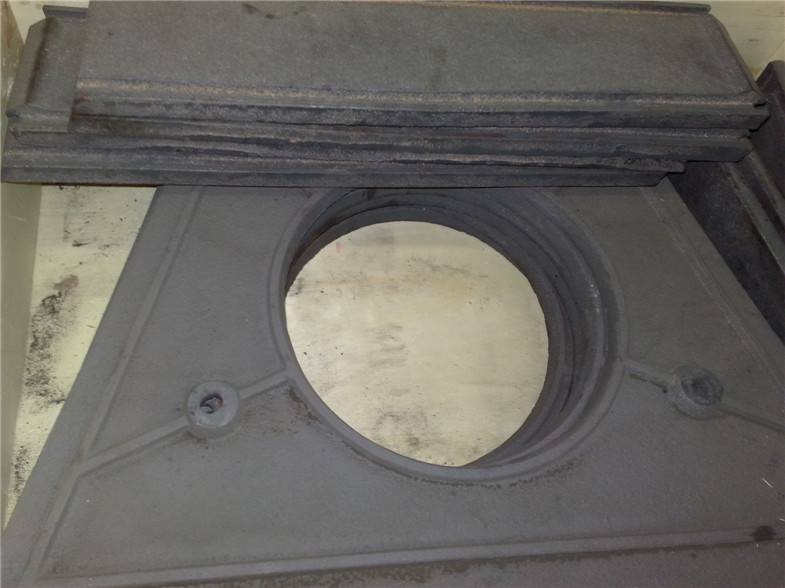

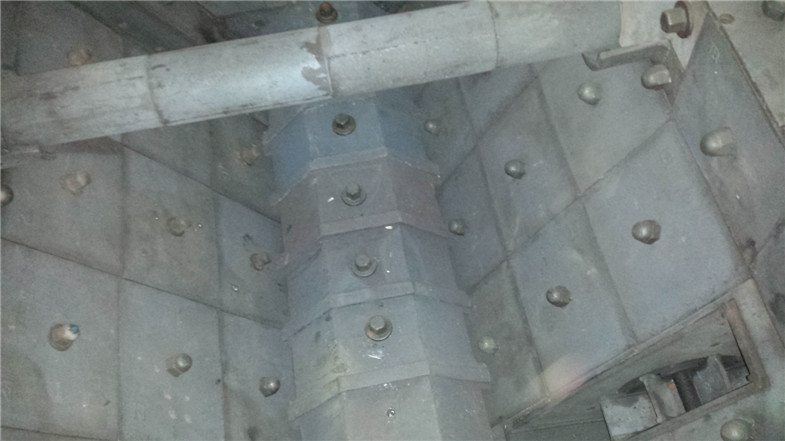

H-beam. There is a protecting cover lining on the internal wall of the box,
which is easy to replace. The dust removing system adopts the internationally
advanced drum type device, characterized by high efficient. The dust emission
meets the relevant requirement of the country regarding environmental
protection.
2. Main Parameters
|
Model
|
HP8016
|
HP1018
|
HP1020
|
|
Suitable work-piece sizes (mm)
|
W*H
|
800*1600
|
1000*1800
|
1000*2000
|
|
L
|
|
Quality standard
|
Surface clearness
|
A-B Sa2.0-Sa2.5
|
|
Surface roughness
|
15—50um
|
|
Shot blaster
|
Quantity (piece)
|
8
|
|
Shot blasting quantity (kg/min)
|
8*200
|
8*250
|
8*250
|
|
Power (kW)
|
8*11
|
8*15
|
8*15
|
|
Input and output conveyor
|
Allowable load (kg/m)
|
1000
|
|
Feeding speed (m/min)
|
0.4—4
|
|
Ventilation capacity (m²/h)
|
15300
|
20400
|
|
Shot recycle quantity (t/h)
|
96
|
120
|
120
|
|
Depth of pit (mm)
|
2090
|
2210
|
2210
|
|
Total power (kW)
|
137
|
176.9
|
183.9
|
|
Power supply
|
AC380V, 50HZ, 3P or tailor made
|
|
Above are our standard models and parameters, and it can be
designed and manufactured on request.
|
*We reserve the right to alter
specifications without prior notice.
3. Main features
The standard models of our H-beam shot
blasting machines have the following features:
 Conveyor feed in and feed out which is very convenient and in very
high efficiency;
8 shot blasters to ensure good cleaning quality;
Robust all steel fabrication with stable structure and good
rigidity, and no deformation after long time using;
Heat treatment to main welding parts
after welding; sand blasting treatment to main welding parts before painting;
All motion parts have lubrication system;
Main electric elements are ABB/Siemens brands;
Lifting lug;
Standard color:

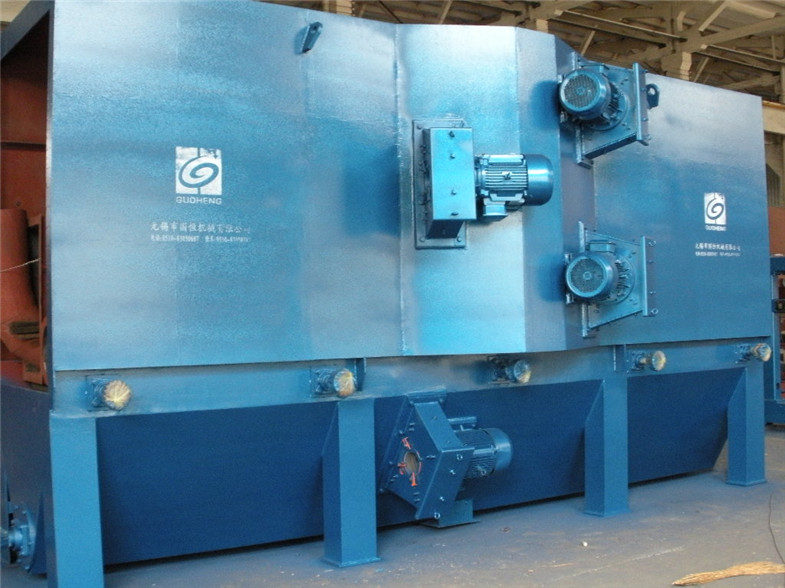

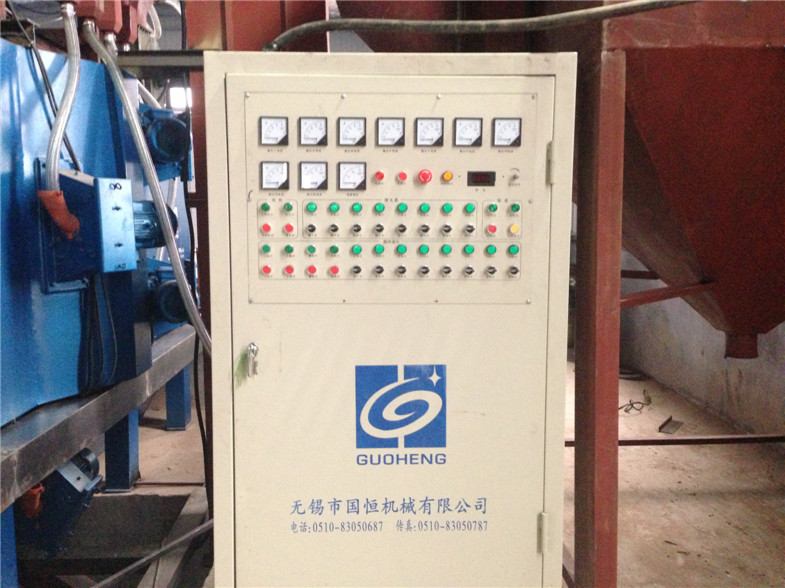

4. Reference photo

|
