Overview

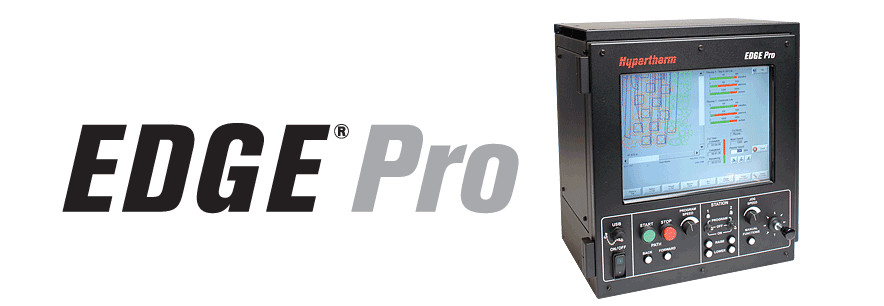

Designed to be flexible and easy to use, the EDGE Pro delivers reliable performance for improved profitability and application performance such as True Hole technology. Using Phoenix software, this CNC improves cut quality and productivity by delivering our expertise directly to your factory, making it as if you have your best operator on every shift.

The EDGE Pro offers multiple back-door interfaces for table manufacturer integration. Providing three analog choices and one SERCOS version, the EDGE Pro interfaces allow the table manufacturer to configure the CNC to match the table design.

Easy

Using the CutPro™Wizard new operators can be ready to cut production parts in less than 5 minutes.Built-in two-station operator’s console, with tactile joystick, speedpot, and torch position control for easy operation.Network and USB access for part program loading and software updates.

Built-in help and cutting optimization tips for improving table performance and process outcomes on demand.

Performance

Through years of cutting experience, Hypertherm engineers have learned the critical parameters to achieve superior quality performance on every part.Cutting applications include high definition, conventional, duct cutting, single- or dual-bevel plasma capability, oxyfuel, laser, and waterjet.Critical plasma, THC and table parameters can be controlled in the part program using Part Program Support (PPS) for repeatable cut quality.True Hole Technology support for HPRXD applications.Watch Windows™ enable on-screen real-time monitoring of key process performance parameters while cutting.Custom cut charts can be created and controlled in the part program or made available to the CutPro Wizard.Support for fast transitions from marking to cutting.

Reliable

Durable glass touchscreen utilizing surface acoustic wave technology.Air cooling to reduce stress on electronic components without dust ingress.Designed and stress tested to ensure consistent operation in the harsh plasma cutting environment.Intuitive hardware service kit helps rapidly isolate system errors.Hinged doors and removable panel for convenient component access.2-year warranty standard.

Specifications

Standard Features

Operating system	Windows® XPe
Hard drive	SATA drive
Display	15" glass touchscreen (surface acoustic wave technology)
Memory	≥1GB
USB interface	Two USB 2.0 ports
Dimensions	435 mm (17.125") W; 463 mm (18.22") H; 316 mm (12.43") D
Temperature range	-10° C to 40° C ambient (14° F to 104° F ambient)
Warranty	Two-year warranty standard
Regulatory compliance	CE, CSA
Operator’s console	Two-station Opcon standard
Operating voltage and frequency	100 – 240V, 50/60 Hz
Software utilities	Part Program Support (PPS), Remote Help, networking, Autogas support, DXF import, and simple shape nesting
