1. Introduction
Conventional welding positioners are
designed for maximum loads of 100KG to 2,000KG have universal applications in
the manual and automatic welding of circumferential seams and in the accurate
positioning of work-pieces, and extensively applied in pressure vessel, metallurgy, power, chemical industry,
metal structure and others lines. We
also provide tailor-made welding positioners according to your special
requirements.
2. Main Parameters
|
Model
|
HB1
|
HB3
|
HB6
|
HB12
|
HB20
|
|
Max loading KGs
|
100
|
300
|
600
|
1,200
|
2,000
|
|
Rated eccentricity mm
|
100
|
150
|
150
|
200
|
250
|
|
Rated center of gravity mm
|
150
|
200
|
250
|
250
|
300
|
|
Worktable diameter mm
|
Φ400
|
Φ600
|
Φ800
|
Φ1000
|
Φ1200
|
|
Tilt angle
|
0°～120°
|
0°～120°
|
0°～120°
|
0°～120°
|
0°～120°
|
|
Rotation speed rpm
|
0.1—1
|
0.1—1
|
0.1—1
|
0.1—1
|
0.09—0.9
|
|
Tilt speed rpm
|
2
|
0.9
|
0.8
|
0.5
|
0.4
|
|
Rotation motor power KW
|
0.06
|
0.37
|
0.37
|
0.75
|
1.1
|
|
Tilt motor power KW
|
0.18
|
0.37
|
0.55
|
1.1
|
1.5
|
|
Max rotation diameter of work-piece in 90° mm
|
600
|
1000
|
1500
|
1570
|
1900
|
|
Earthing Amperes A
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Main frame length mm
|
740
|
930
|
1200
|
1400
|
1700
|
|
Main frame height mm
|
420
|
700
|
900
|
1000
|
1200
|
|
Main frame width mm
|
527
|
820
|
800
|
1000
|
1200
|
|
Power supply
|
380V 50HZ 3P or tailor made
|
|
Above are our standard models and parameters, and it can be
designed and manufactured on request.
|
*We reserve the right to alter
specifications without prior notice.
3. Main features
The standard models of our conventional welding
positioners have the following features:
 Free standing, robust all steel fabrication;
Variable speed table rotation
controlled by inverter;
Motor with brake;
Fully machined turntable of various
sizes with centering grooves and T-slots;
Sand blasting treatment to main welding parts before painting;
All motion parts have lubrication system;
Main electric elements are ABB/Siemens brands;
Hand pendant with Forward&Reverse Rotation, Tilt UP&DOWN, and
speed potentiometer are standard;
Efficient built-in earthing;
Lifting lug on the base of roller bed;
Foot switch (Note: for HB20, foot pedal is an option.);
Standard color:
Optional features:
Square worktable;
Extension arms;
Extensive system accessories such as three-jaw chucks;
Interface for integral control with
welding column&boom;
4. Supply range
Welding positioner (including machine frame, worktable, etc) 1set
Electric control system [including 1piece of electric control
cabinet, 1piece of remote control box and foot pedal with cable 6m each (no
foot pedal for HB20)] 1set
Technical documents (with manual book, conformity certificate,
packing list, etc) 1set

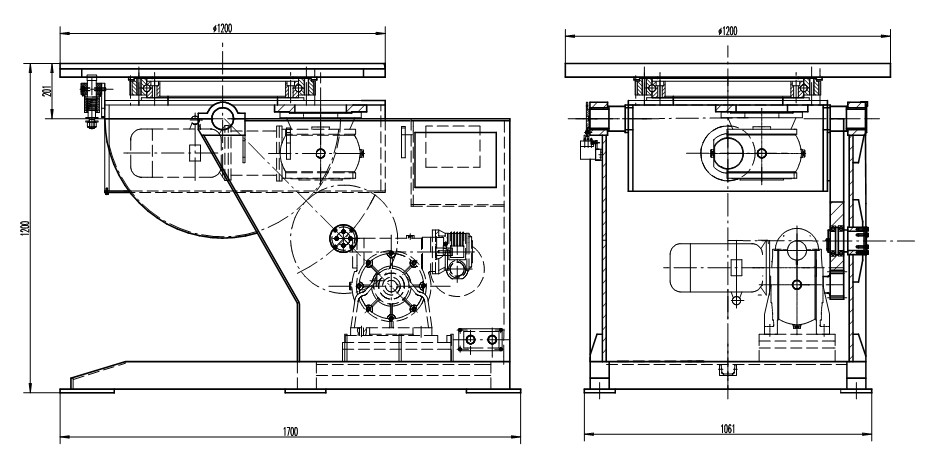

5. Reference drawing

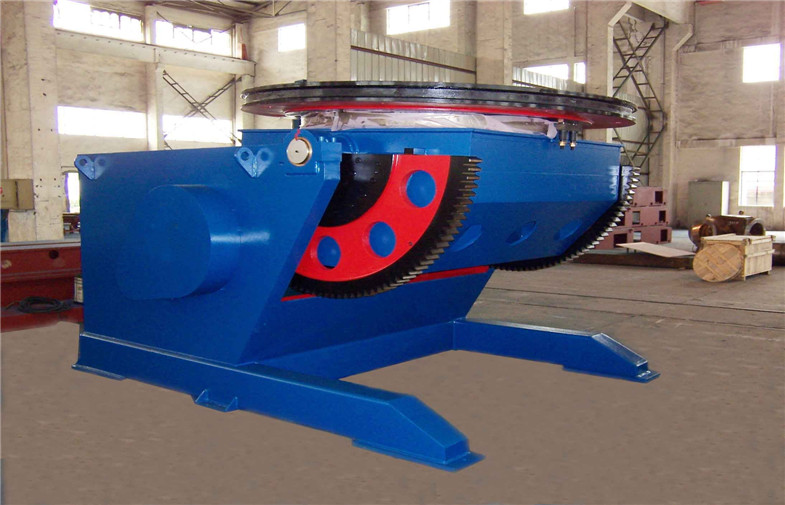

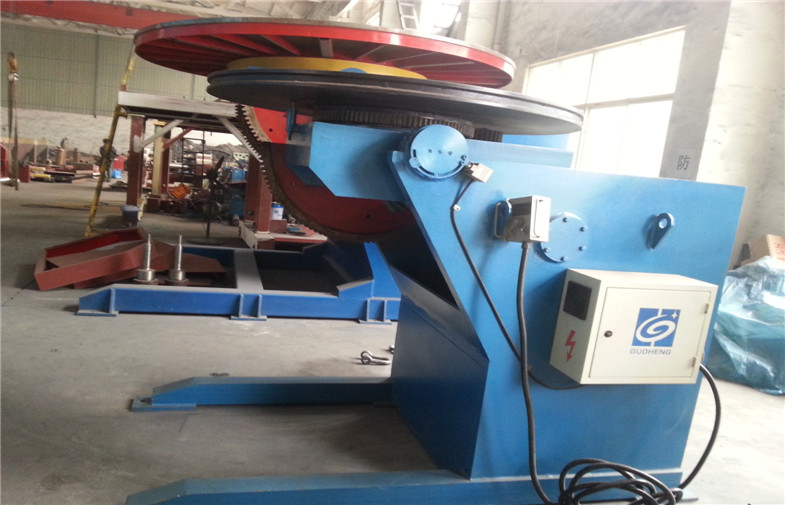

6. Reference photo
 |
