1. Introduction
This kind of turning-roll is applicable for
narrow gap vessel welding on thick-wall cylinder, or it is necessary to prevent
axial drift of work-piece during welding. Its adjustment is adopted with roller
up-lift type, which is advanced in structure, complete in function, easy in
operation and reliable in performance. So it is ideal equipment for improving
welding quality and realizing welding automation.
We also tailor made up your requirements.
Please communicate with us for more details.
2. Main Parameters
|
Model
|
HGFK200
|
HGFK500
|
|
Max loading T
|
200
|
500
|
|
Driving capacity T
|
200
|
500
|
|
Suit diameter mm
|
Min
|
1000
|
1000
|
|
Max
|
7000
|
7000
|
|
Metallic Roller mm
|
Dia
|
700
|
800
|
|
Width
|
260
|
350
|
|
Driving motor power Kw
|
2*4
|
2*7.5
|
|
Linear speed mm/min
|
100—1000
|
|
Speed Control
|
VFD
|
|
Anti-drift accuracy mm
|
±1.5mm
|
|
Anti-drift type
|
Double
up-lift type
|
|
Conduction current A
|
2000
|
|
Above are our standard models and parameters, and it can be
designed and manufactured on request.
|
*We reserve the right to alter specifications without prior notice.
3. Main features
The standard models of our roller beds have
the following features:
 This series of turning-roll is mainly composed of driving
turning-roll, idler turning-roll, detecting unit and electric control system.
Steplessly controllable rotary drives by means of A.C. or D.C. motor
(on request) drive via self-locking worm gear reducers;
Schneider or Panasonic inverter to realize VFD speed control and
synchronous rotation of rollers;
Heat treatment to main welding parts after welding; sand blasting
treatment to main welding parts before painting;
Electric system is composed of PLC, A.C. Inverter, HMI and
displacement sensor.
The displacement sensor is made by NOVO of Germany;
The main control applies the PLC and A/D converter unit of
MITSUBISHI FX2N.
Upper surface of base is treated with fine machining;
Roller distance is lead-screw adjustable and roller surrounding
angle among 45°～110°;
All motion parts have lubrication system;
Main electric elements are ABB/Siemens brands;
Hand pendant;
Lifting lug on the base of roller bed;
Standard color:
4. Supply range
Driving turning roll 1set
Idle turning roll 1set
Detecting device 1set
Electric control system [including 1piece of electric control
cabinet, 1piece of remote control box with cable 6m] 1set
Technical documents (with manual book, conformity certificate,
packing list, etc) 1set

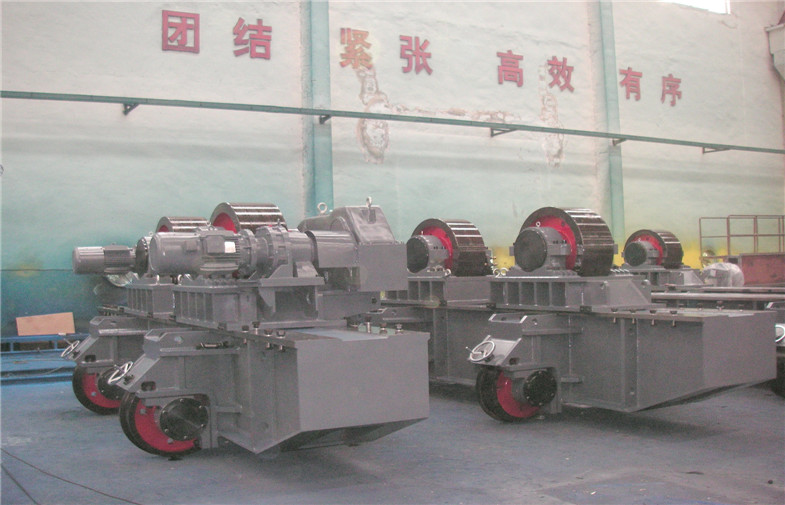

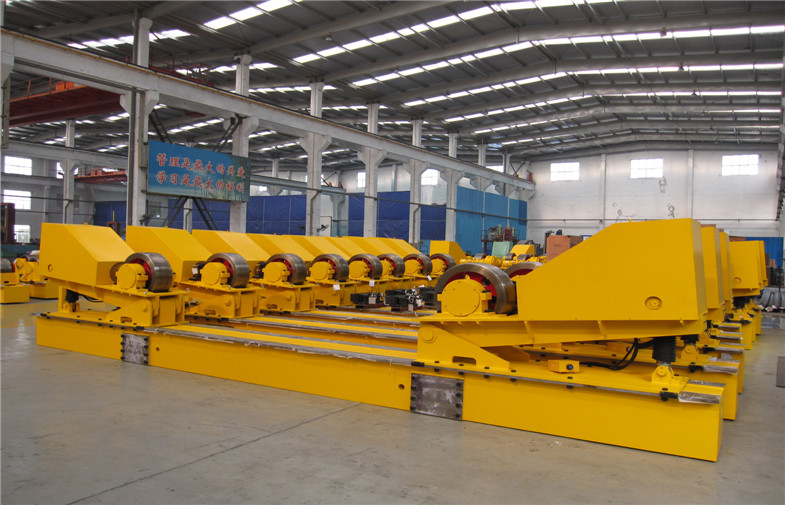

5. Reference photo
|
